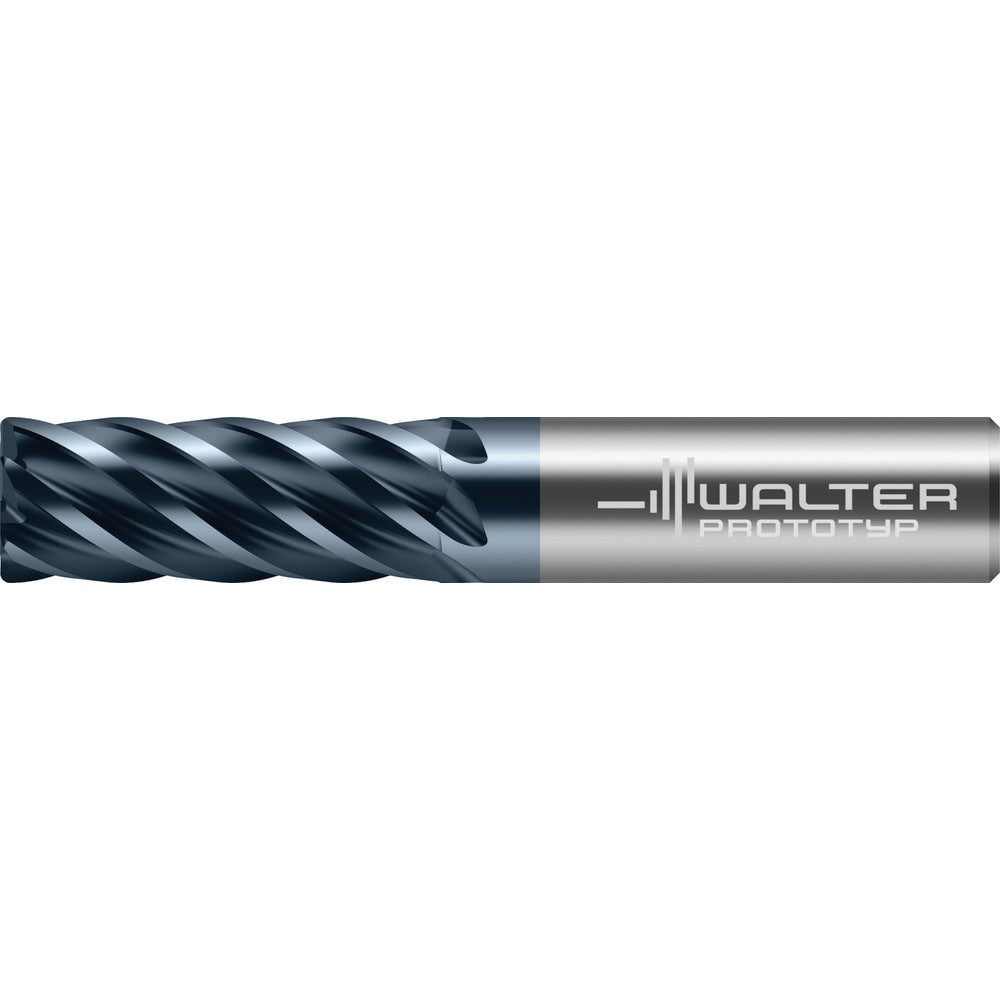

Corner Radius End Mill: 1-1/4" Dia, 2-1/4" LOC, 0.0300" Radius, 6 Flute, Solid Carbide
Item #: 09812645
Brand: Walter-Prototyp
Model #: 8479896
Product Specifications
| Mill Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | nACRo |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Chipbreaker | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Inch) | 1-1/4 |
| Reach Length (Decimal Inch) | 2.7953 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Series | MA377.A-6-R |
| Proprietary Coating Designation | WJ30EN |
| Manufacturers Catalog Number | MA377.31.7A6D076-WJ30EN |
