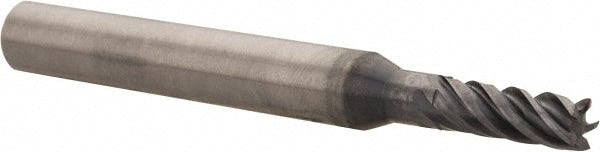

Square End Mill: 4.00 mm Dia, 11.00 mm LOC, 5 Flute, Solid Carbide
Item #: 44193977
Brand: Kennametal
Model #: 4046285
Product Specifications
| Mill Diameter (mm) | 4.00 |
| Mill Diameter (Decimal Inch) | 0.1575 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4331 |
| Length of Cut (mm) | 11.00 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 55.00 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; K; M |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | KCPM15 |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Series | UCDE |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
