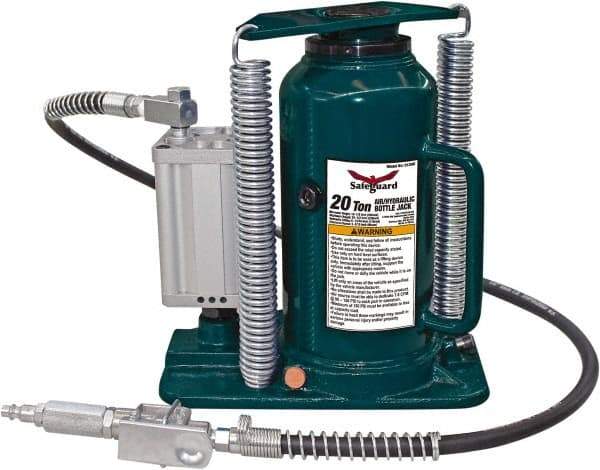

Safeguard - 20 Ton Capacity Air-Actuated Bottle Jack - 10-1/2" to 20-1/2" High, 6.77" Piston Stroke, 1.42" Screw Diam, 2.2" Plunger Diam, 7" Long x 9-1/2" Wide Base
Item #: 35717123
Brand: Safeguard
Model #: 61206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Air-Actuated Bottle Jack |
| Load Capacity (Ton) | 20 |
| Minimum Height (Inch) | 10-1/2 |
| Minimum Height (Decimal Inch) | 10.50 |
| Maximum Height (Decimal Inch) | 20.5000 |
| Maximum Height (Inch) | 20-1/2 |
| Base Width (Inch) | 9-1/2 |
| Base Width (Decimal Inch) | 9.5000 |
| Piston Stroke (Decimal Inch) | 6.7700 |
| Base Length (Inch) | 7 |
| Base Length (Decimal Inch) | 7.0000 |
| Plunger Diameter (Decimal Inch) | 2.2000 |
| Plunger Diameter (Inch) | 2.2000 |
| Screw Diameter (Inch) | 1.4200 |
