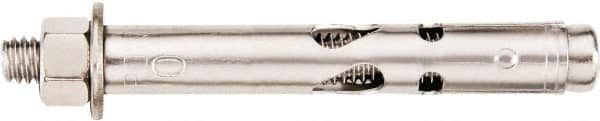

Powers Fasteners - 3/8" Diam, 3/8" Drill, 6" OAL, 2-1/4" Min Embedment Sleeve Concrete Anchor - 304 Stainless Steel, Flat Head, Combination Slotted/Phillips Drive, 6" Thread Length
Item #: 35642933
Brand: Powers Fasteners
Model #: 06176S-PWR
Exact Tooling IR#: 04
Features and Benefits
Sleeve concrete anchors are used in brick, concrete and grout-filled or hollow concrete block. They have an internal expander that pulls up and expands the anchor s sleeve when the anchor s nut is tightened. This increases holding power.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Sleeve |
| Diameter (Inch) | 3/8 |
| Drill Size (Inch) | 3/8 |
| Overall Length (Inch) | 6 |
| Minimum Embedment (Inch) | 1-5/8 |
| Material | Stainless Steel |
| Material Grade | 304 |
| Head Type | Flat |
| Thread Size | 5/16-18 |
| Drive Type | Combination Slotted/Phillips |
| Thread Length (Inch) | 6 |
| For Use With | Normal Weight Concrete; Structural Lightweight Concrete; Grouted Concrete Masonry; Hollow Concrete Masonry |
| Bolt Size (Inch) | 5/16 |
| System of Measurement | Inch |
