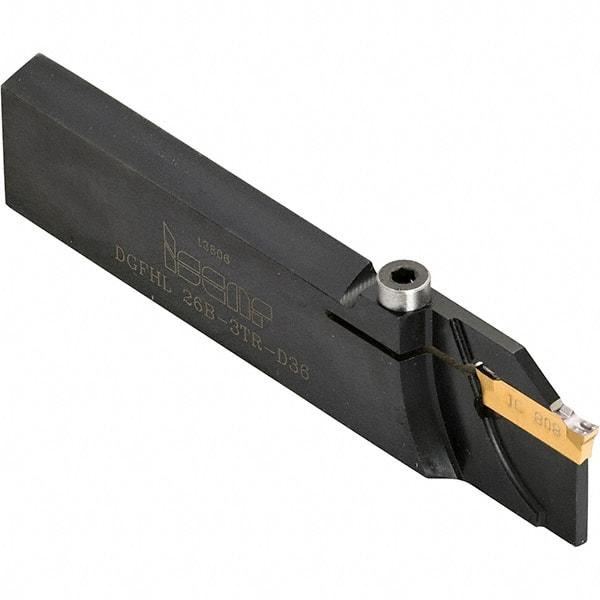

Iscar - 3 to 3.18mm Groove Width, Right Hand Cut, DGFHL Indexable Grooving Blade - DGN-P, DGN-UT/UA, DGN-WP, DGN-Z, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C, DGR/L-Z/ZS, DGRC/LC-C Insert Style, Series Do-Grip
Item #: 35483239
Brand: Iscar
Model #: 2392101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Blade Style | DGFHL |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 36.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4173 |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 7.90 |
| Blade Width (Decimal Inch) | 0.3110 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C; DGR/L-Z/ZS; DGRC/LC-C |
| Complete Insert Compatibility | DGN 1000P; DGN 1002J; DGN 3000P; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3202J; DGNC 3102C; DGNM 3202C; DGNM 3202J; DGR 3000ZS-15D; DGR 3000ZS-6D; DGR 3002Z-6D; DGR 3102C-8D; DGR/L 3102C-15D; DGR/L 3102C-6D; DG |
