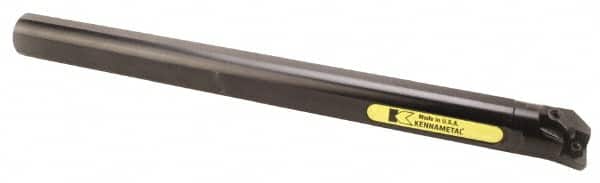

Kennametal - 37.34mm Min Bore Diam, 355.6mm OAL, 1-1/4" Shank Diam, A-MCFN Indexable Boring Bar - CN.. Insert, Screw or Clamp Holding Method
Item #: 35425131
Brand: Kennametal
Model #: 1808112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MCFN |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 37.34 |
| Minimum Bore Diameter (Decimal Inch) | 1.4700 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 355.60 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | CN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | CN.. 432 |
| Toolholder Material | Steel |
