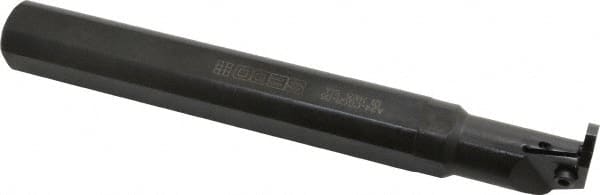

Seco - A..-CGGR, Right Hand, 0.515" Max Depth of Cut, Indexable Grooving Tool Holder - LC..1606.. Insert Compatibility, 12" OAL, Through Coolant
Item #: 35419886
Brand: Seco
Model #: 59843
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5150 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | A..-CGGR |
| Insert Compatibility | LC..1606.. |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 1.1300 |
| Head Height (Decimal Inch) | 2.3600 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LC.. 1606..; LCGN; LCMF; LCMR |
| Minimum Bore Diameter (Decimal Inch) | 1.8000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
