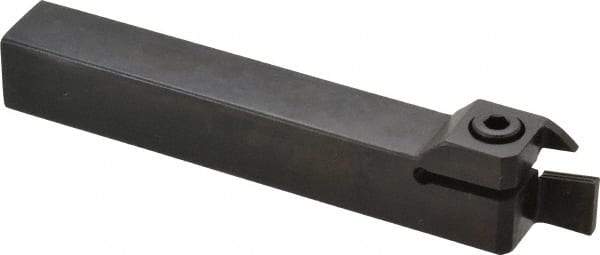

Seco - CIIR, Right Hand Cut, 5/8" Shank Height x 5/8" Shank Width, Indexable Turning Toolholder - 4-1/2" OAL, LC..1603.. Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 35419787
Brand: Seco
Model #: 57792
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CIIR |
| Series | Multi-Directional Turning (MDT) |
| Shank Width (Inch) | 5/8 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | LC..1603.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1250 |
| Toolholder Material | Steel |
