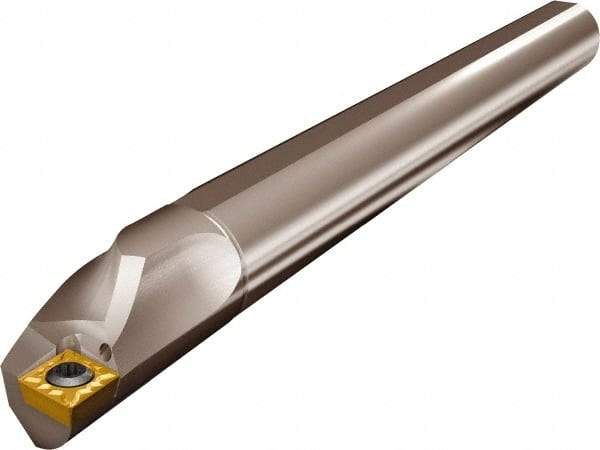

Kyocera - 27mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-SCLP-A Indexable Boring Bar - 46mm Max Bore Depth, CPGB 32.., CPMB 32.., CPMH 32.., CPMT 32.. Insert, Screw Holding Method
Item #: 35281849
Brand: Kyocera
Model #: 8829010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLP-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 27.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.0630 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 46.00 |
| Maximum Bore Depth (Decimal Inch) | 1.8110 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CPGB 32..; CPMB 32..; CPMH 32..; CPMT 32.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 13.50 |
| Center to Cutting Edge (Decimal Inch) | 0.5315 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | CPGB 3205T00315ME; CPGB 3205T00315SE; CPGB 321S00435MET; CPGB 321S00435SET; CPGB 321S00525MES; CPGB 321T00315; CPGB 321T00315ME; CPGB 321T00315SE; CPGB 322S00435MET; CPGB 322T00315; CPMB 3205; CPMB 321; CPMB 322; CPMH 3202; CPMH 3202NE; CPMH 3205; CPMH 32 |
| Toolholder Material | Steel |
