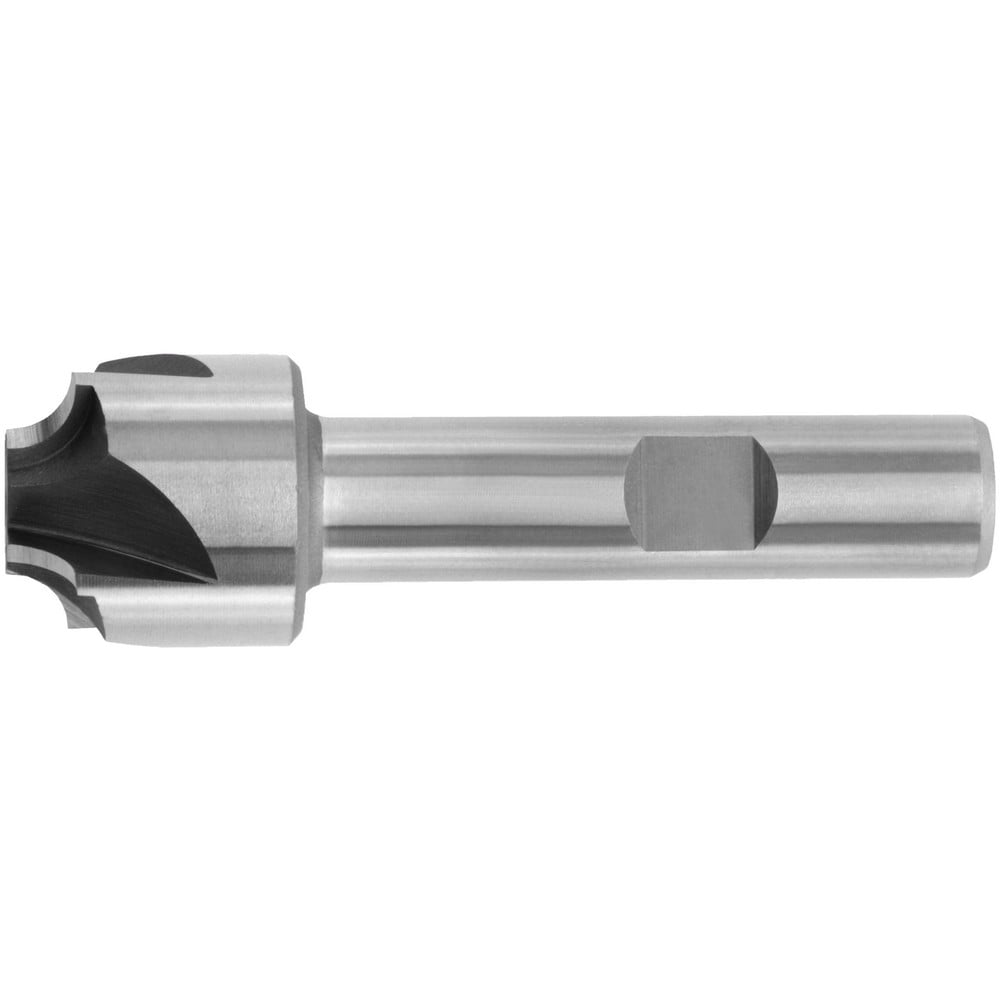

Corner Rounding End Mill: 3/16" Radius, 7/8" Dia, 4 Flutes, 12.70 mm LOC, High Speed Steel
Item #: 19587815
Brand: Cleveland
Model #: C75378
Product Specifications
| Mill Diameter (mm) | 22.23 |
| Mill Diameter (Inch) | 7/8 |
| Mill Diameter (Decimal Inch) | 0.8750 |
| Length of Cut (mm) | 12.7000 |
| End Mill Material | High Speed Steel |
| Number Of Flutes | 4 |
| Radius (Decimal Inch) | 0.1875 |
| Radius (Inch) | 3/16 |
| Radius (mm) | 4.76 |
| Shank Type | Weldon Flat; Straight |
| Flute Type | Spiral |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.75 |
| Shank Diameter (mm) | 19.0500 |
| Overall Length (Inch) | 3-1/8 |
| Overall Length (mm) | 79.3800 |
| Overall Length (Decimal Inch) | 3.1250 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Material Grade | M2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | CRE |
| Coolant Through | No |
| Single Or Double End | Single End |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 27112803 |
