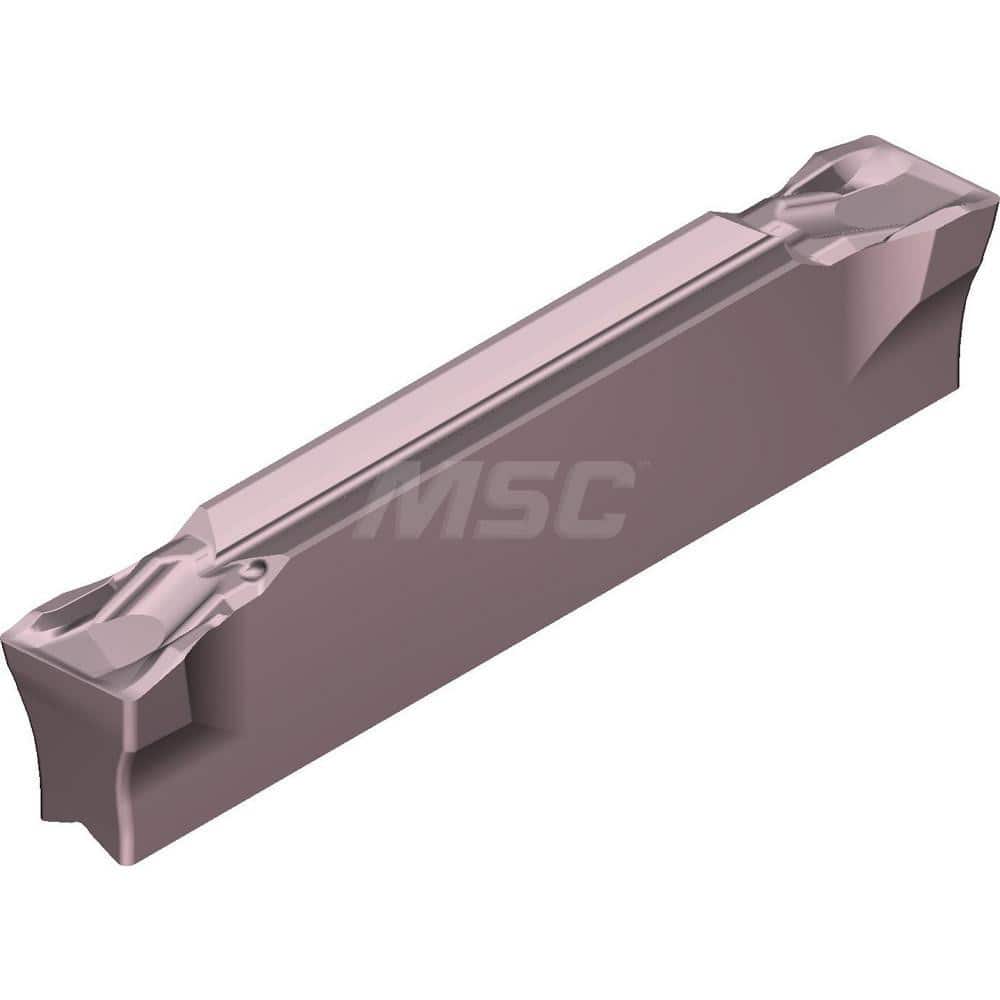

Grooving Insert: GCM2002CG AC520U, Solid Carbide Super ZX Finish, Right Hand, 2 mm Cutting Width, 20 mm Max Depth, Series GND
Item #: 35231968
Brand: Sumitomo
Model #: 18HWAMN
Product Specifications
| Insert Style | GCM |
| Insert Size | 2002 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC520U |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 3.60 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | PVD |
| Relief Angle | 7 |
| Manufacturers Catalog Number | GCMR2002-CG-05-AC520U |
| Chip Breaker | CG |
| Coating/Finish | Super ZX |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 3.60 |
