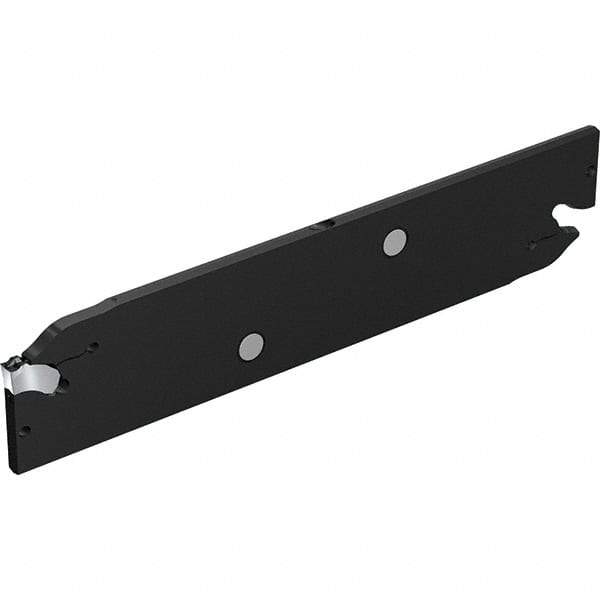

Walter - 0.085" Blade Width, 5.929" OAL, Neutral Cut, Indexable Cut-Off Blade - 60mm Max Depth of Cut, G2042-P Blade, G2042-P Series
Item #: 35064252
Brand: Walter
Model #: 6830204
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Blade Height (mm) | 0.00 |
| Blade Height (Decimal Inch) | 0.0000 |
| Blade Width (mm) | 2.15 |
| Blade Width (Decimal Inch) | 0.0850 |
| Blade Overall Length (mm) | 150.60 |
| Blade Overall Length (Decimal Inch) | 5.9290 |
| Blade Style | G2042-P |
| Series | G2042-P |
| Insert Seat Size | 0 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.0000 |
| Maximum Workpiece Diameter (mm) | 0 |
| Maximum Depth of Cut (mm) | 60.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3620 |
| Cutting Height (mm) | 0.00 |
| Cutting Height (Decimal Inch) | 0.0000 |
| Manufacturers Catalog Number | G2042.32N-5T60SX-P |
