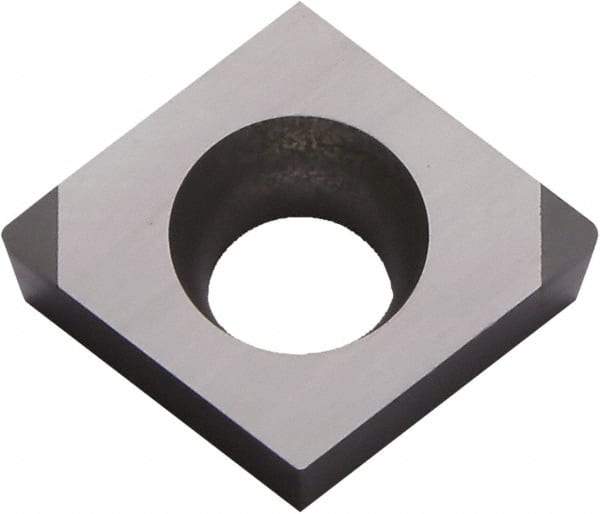

Kyocera - CCMW3251 ME Grade KBN475 CBN Turning Insert - 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 35047851
Brand: Kyocera
Model #: 8844307
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CCMW |
| Insert Size | 3251 |
| Material | CBN |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | KBN475 |
| Chip Breaker | ME |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCMW09T304MEF |
| Rake | Positive |
| Relief Angle | 7 |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
