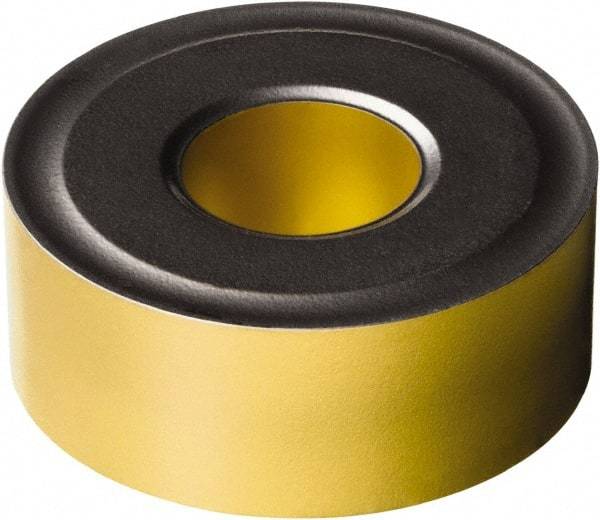

Sandvik Coromant - RNMG86 0 Grade 3225 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 1" Inscr Circle, 3/8" Thick, 12.7mm Corner Radius
Item #: 35017193
Brand: Sandvik Coromant
Model #: 6868622
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 86 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (mm) | 12.7 |
| Manufacturer's Grade | 3225 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | 0 |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| ISO Number | RNMG 25 09 00 3225 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Rounded |
| Shape | Round |
