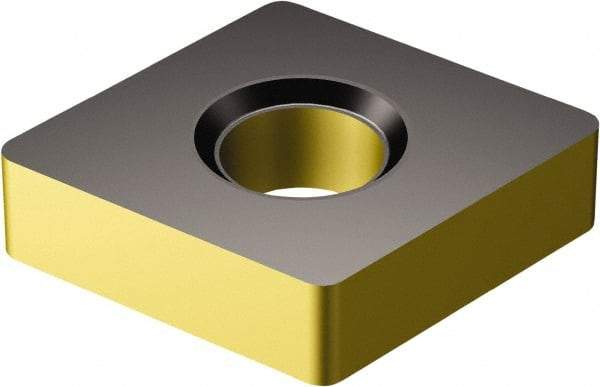

Sandvik Coromant - CNMA646 KR Grade 3225 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 3/32" Corner Radius
Item #: 35017094
Brand: Sandvik Coromant
Model #: 6868587
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMA |
| Insert Size | 646 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.3813 |
| Corner Radius (Decimal Inch) | 0.0937 |
| Manufacturer's Grade | 3225 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | KR |
| Hole Diameter (mm) | 7.92 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | CNMA 19 06 24-KR 3225 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 16.94 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Rounded |
| Shape | Diamond |
