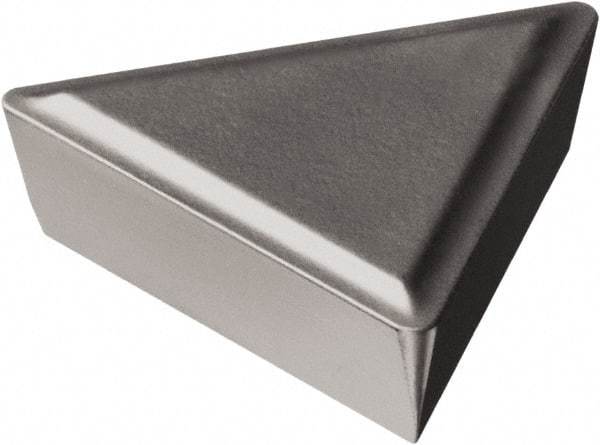

Sandvik Coromant - TPMR221 53 Grade H13A Carbide Turning Insert - 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 35002039
Brand: Sandvik Coromant
Model #: 5755217
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMR |
| Insert Size | 221 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | H13A |
| Chip Breaker | 53 |
| ISO Number | TPMR 11 03 04 H13A |
| Relief Angle | 11 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max S |
| Maximum Depth of Cut (mm) | 10.60 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Triangle |
