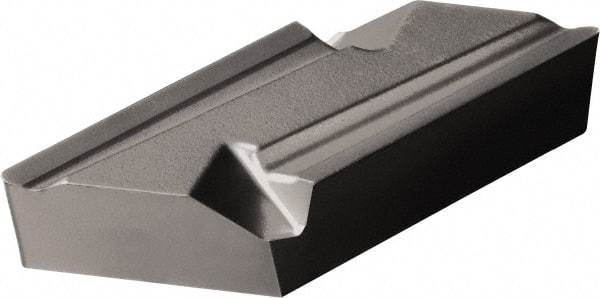

Sandvik Coromant - KNUX1604 12 Grade H13A Carbide Turning Insert - Uncoated, 55° Parallelogram, 3/16" Thick, 0.5mm Corner Radius
Item #: 35000470
Brand: Sandvik Coromant
Model #: 5733255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KNUX |
| Insert Size | 1604 |
| Material | Carbide |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.5 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | 12 |
| ISO Number | KNUX 16 04 05F L12 H13A |
| Relief Angle | 0 |
| Included Angle | 55 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 16.00 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Parallelogram |
