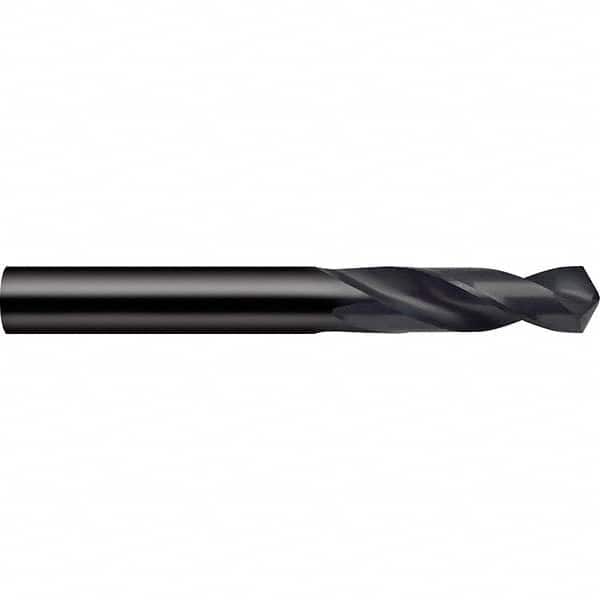

Guhring - 1.26mm 118° Spiral Flute High Speed Steel Screw Machine Drill Bit
Item #: 55069652
Brand: Guhring
Model #: 9002230012600
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0496 |
| Drill Bit Size (mm) | 1.26 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 7.00 |
| Overall Length (mm) | 28.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 1.26 |
| Shank Diameter (Decimal Inch) | 0.0496 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.014 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 1897 |
| Material Grade | M2 |
| Series/List | 223 |
| Length Type | Stub |
