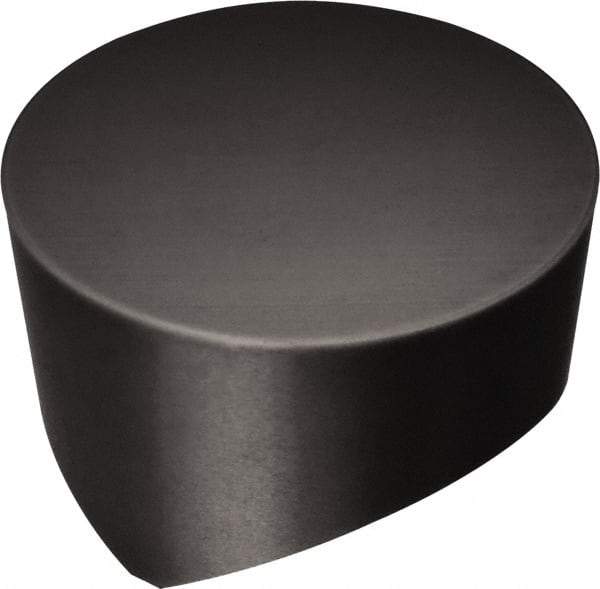

Sandvik Coromant - RCGX56.3 Grade 650 Ceramic Turning Insert - TiN Finish, Round, 5/8" Inscr Circle, 10mm Thick
Item #: 34998922
Brand: Sandvik Coromant
Model #: 5740339
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 56.3 |
| Material | Ceramic |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Decimal Inch) | 0.3937 |
| Thickness (mm) | 10.00 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | RCGX 15 10 00T20015 650 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Shape | Round |
