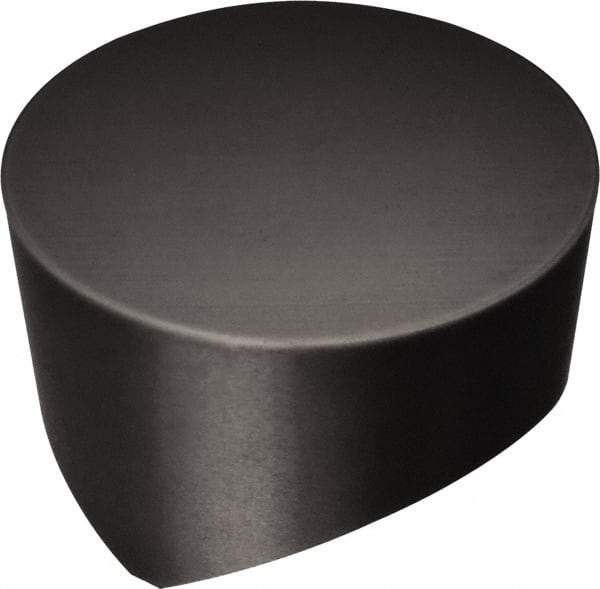

Sandvik Coromant - RCGX87.6 Grade 650 Ceramic Turning Insert - TiN Finish, Round, 1" Inscr Circle, 12mm Thick
Item #: 34998906
Brand: Sandvik Coromant
Model #: 5740343
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 87.6 |
| Material | Ceramic |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Decimal Inch) | 0.4724 |
| Thickness (mm) | 12.00 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | RCGX 25 12 00T20015 650 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Shape | Round |
