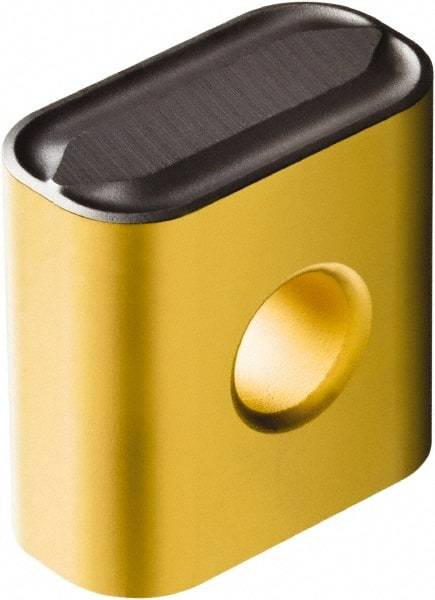

Sandvik Coromant - LNUX1919 PM Grade 4215 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 90° Rectangle, 3/4" Thick, 4mm Corner Radius
Item #: 34994863
Brand: Sandvik Coromant
Model #: 5734459
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNUX |
| Insert Size | 1919 |
| Material | Carbide |
| Thickness (Inch) | 3/4 |
| Thickness (Decimal Inch) | 0.7500 |
| Thickness (mm) | 19.05 |
| Corner Radius (mm) | 4 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 4215 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | PM |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | LNUX 19 19 40-PM 4215 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 15.05 |
| Insert Holding Method | Pin |
| Cutting Edge Style | Rounded |
| Shape | Rectangle |
