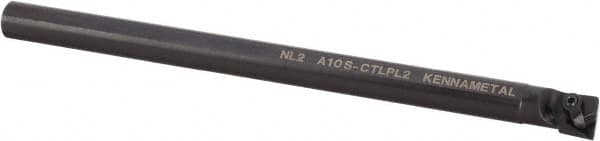

Kennametal - 19.56mm Min Bore Diam, 10" OAL, 5/8" Shank Diam, A-CTLP Indexable Boring Bar - 30.61mm Max Bore Depth, TP.. 221 Insert, Clamp Holding Method
Item #: 34988238
Brand: Kennametal
Model #: 3994022
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CTLP |
| Series | Kendex |
| Minimum Bore Diameter (mm) | 19.56 |
| Minimum Bore Diameter (Decimal Inch) | 0.7700 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 30.61 |
| Maximum Bore Depth (Decimal Inch) | 1.2050 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | TP.. 221 |
| Through Coolant | Yes |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 10.31 |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Coolant Hole Diameter (mm) | 3.96 |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Complete Insert Compatibility | TP.. 221 |
| Toolholder Material | Steel |
