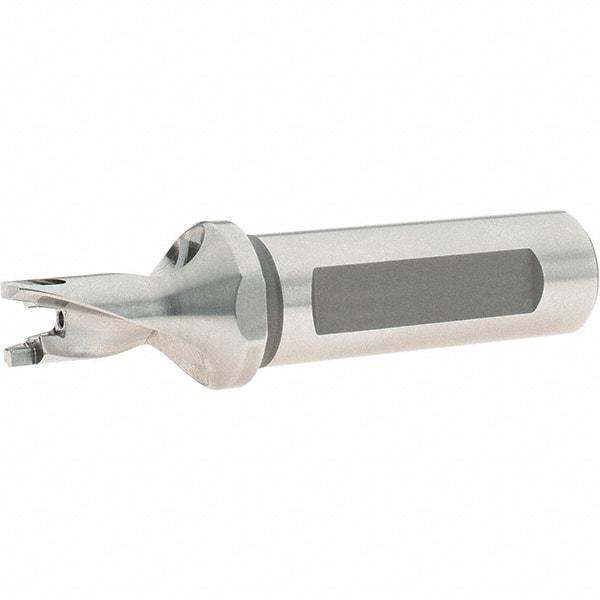

Iscar - 0.394" to 0.409" Diam, 1.5xD, 0.59" Max Depth, 5/8" Shank Diam, 3.12" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 10 Seat Size, 34947044 Toolholder, Series SumoCham
Item #: 34947044
Brand: Iscar
Model #: 3202622
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3940 |
| Maximum Drill Diameter (Decimal Inch) | 0.4090 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.5900 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 10 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.2300 |
| Overall Length (Decimal Inch) | 3.1200 |
| Shank Length (Decimal Inch) | 1.8900 |
