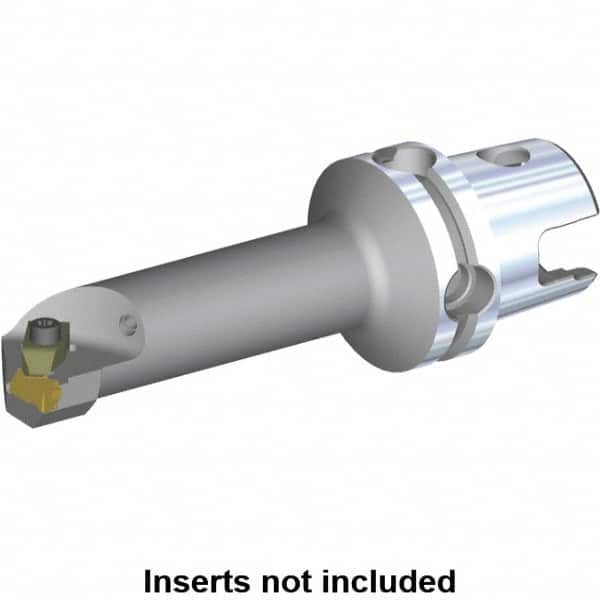

Kennametal - NG4R Insert, 110mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size KM50, Through Coolant, Series Top Notch
Item #: 34943936
Brand: Kennametal
Model #: 3790594
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | Top Notch |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | NG4R |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | NG 4R |
| Maximum Depth of Cut (mm) | 91.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.5827 |
