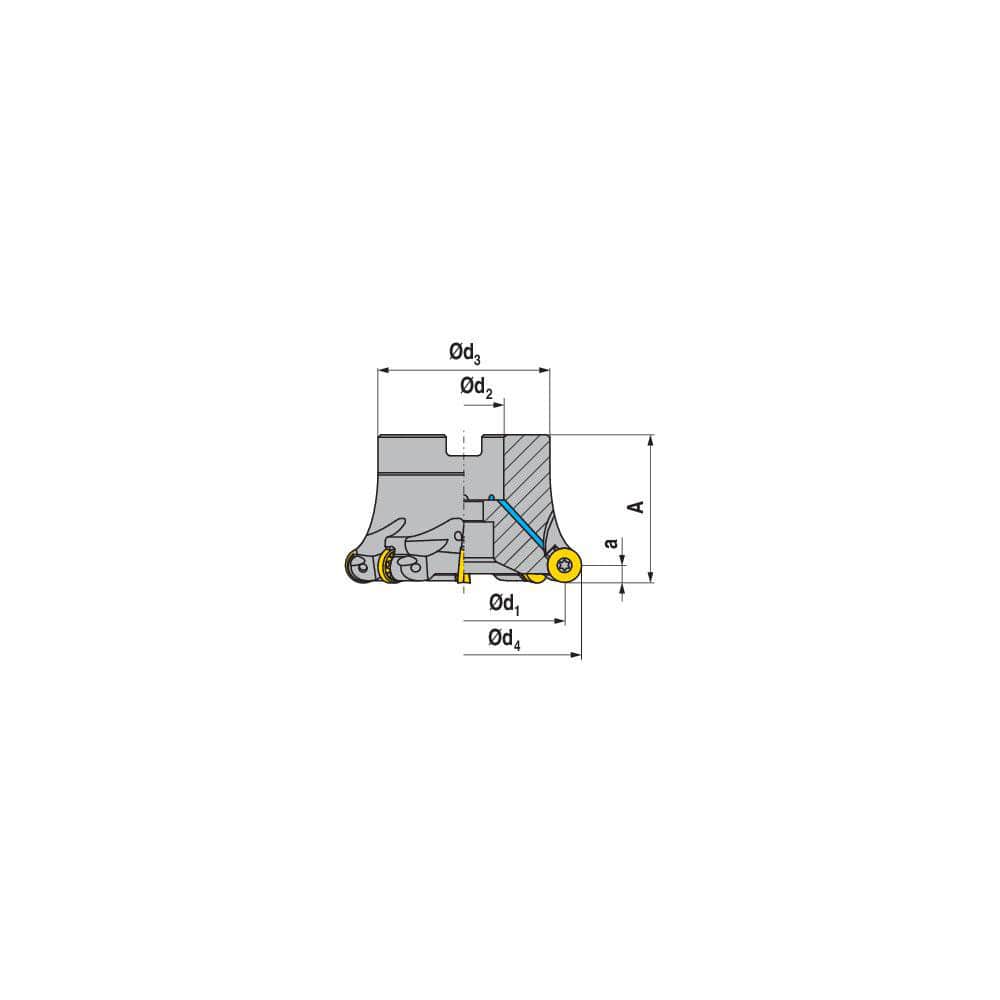

Indexable Copy Face Mills; Maximum Depth Of Cut: 10.00 mm; Compatible Insert Size Code: RP.X 2006..; Arbor Hole Diameter (mm): 27.00; Maximum Ramping Angle: 3.2 ™; Overall Height (mm): 50.00 mm; Series: A251-20; Number of Cutter Inserts: 5; Cutter Style:
Item #: 33950825
Brand: Ceratizit
Model #: 50686380
Product Specifications
| Maximum Depth Of Cut | 10.00 mm |
| Compatible Insert Size Code | RP.X 2006.. |
| Arbor Hole Diameter (mm) | 27.00 |
| Maximum Ramping Angle | 3.2 ? |
| Overall Height (mm) | 50.00 mm |
| Series | A251-20 |
| Number of Cutter Inserts | 5 |
| Cutter Style | A251 |
| Maximum Rpm | 7950.000 |
| Tool Application | Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw; Clamp |
| Hub Diameter (Decimal Inch) | 58.0000 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 80.00 mm |
| Minimum Cutting Diameter (Decimal Inch) | 60.00 mm |
