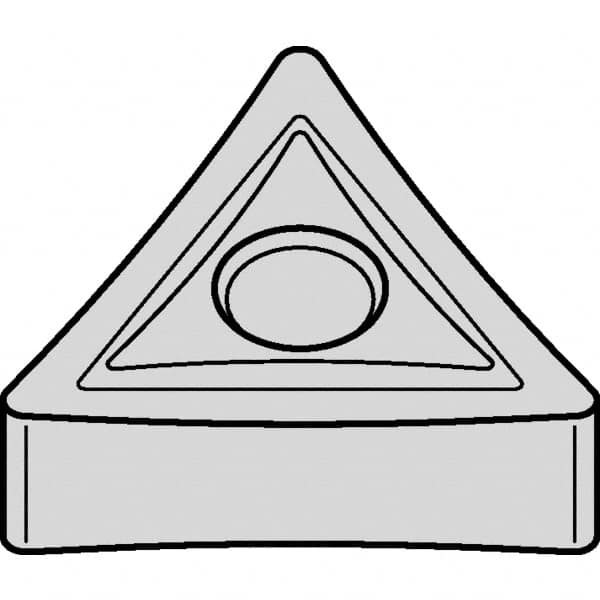

Kennametal - TNGP330.5 Grade KCU10 Carbide Turning Insert - TiAlN Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 33921313
Brand: Kennametal
Model #: 5062126
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNGP |
| Insert Size | 330.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Insert Length (Decimal Inch) | 0.6500 |
| ISO Number | TNGP160402 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
