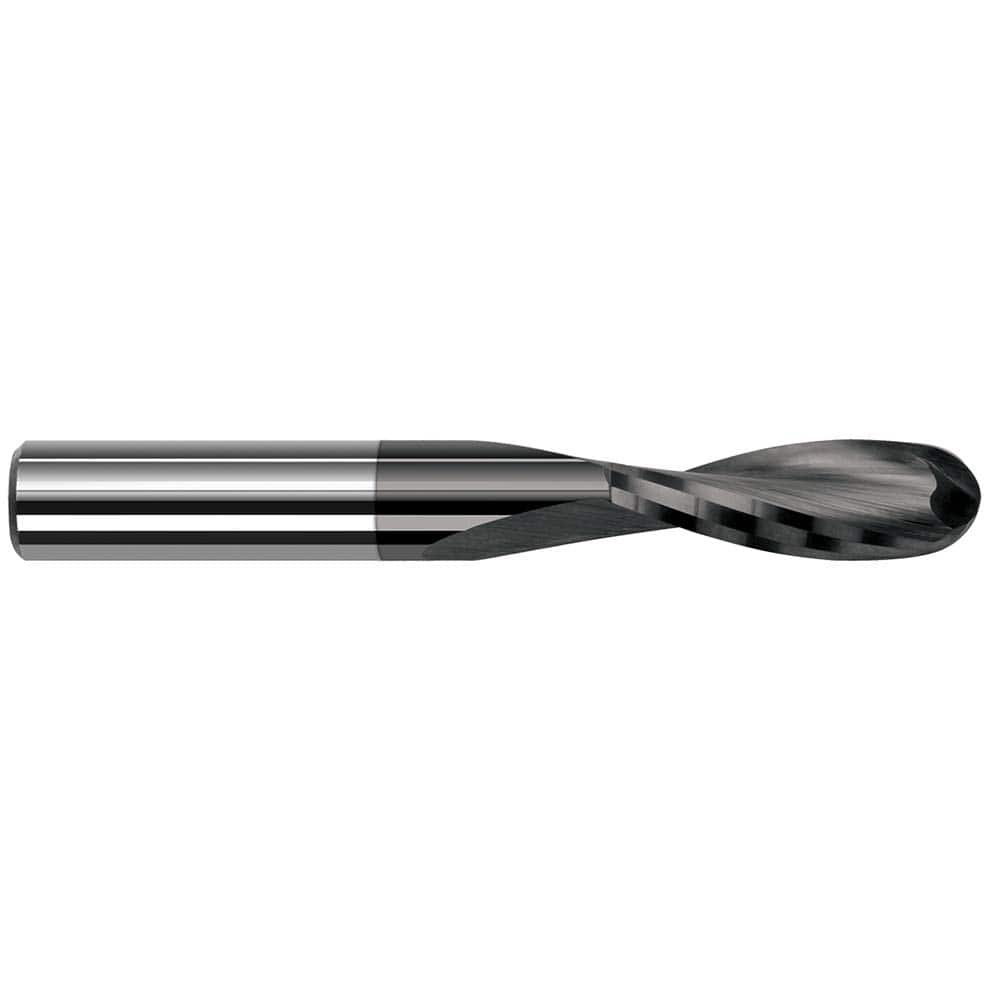

Ball End Mill: 0.25″ Dia, 0.75″ LOC, 2 Flute, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 20 ° Helix, Amorphous Diamond Coated, Single End
Item #: 33815796
Brand: Harvey Tool
Model #: 49616-C4
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| Helix Angle | 20 |
| Length Of Cut Range (Decimal Inch) | 0.7000 to 1.0000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Upcut |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Amorphous Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
