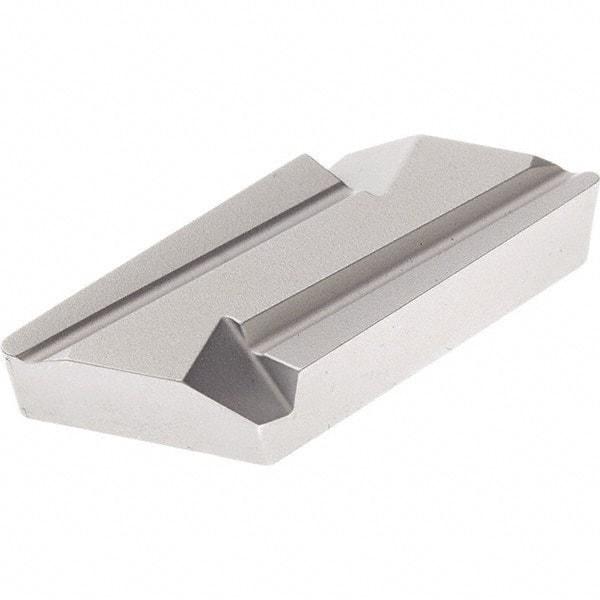

Seco - KNUX160405 11 Grade TP3501 Carbide Turning Insert - TiCN/Al2O3 Finish, 55° Parallelogram, 16.2mm Inscr Circle, 3/16" Thick, 0.5mm Corner Radius
Item #: 33742123
Brand: Seco
Model #: 49336
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KNUX |
| Insert Size | 160405 |
| Material | Carbide |
| Inscribed Circle (mm) | 16.20 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.50 |
| Manufacturer's Grade | TP3501 |
| Coating | TiCN/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | 11 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Included Angle | 55 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Parallelogram |
