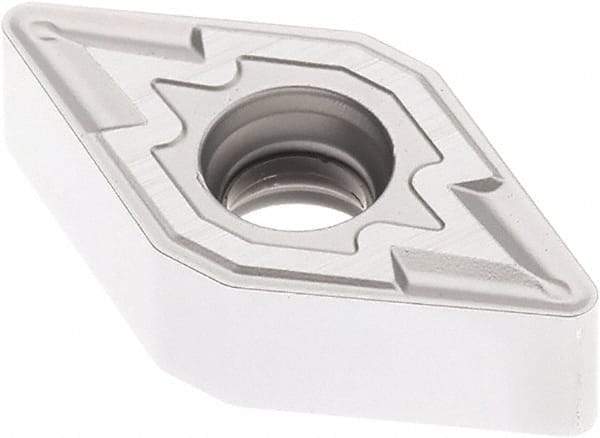

Seco - DNMU332 M3 Grade TP3501 Carbide Turning Insert - Ti(C/N)/Al2O3 Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 33719626
Brand: Seco
Model #: 48964
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMU |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | TP3501 |
| Coating | Ti(C/N)/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | M3 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
