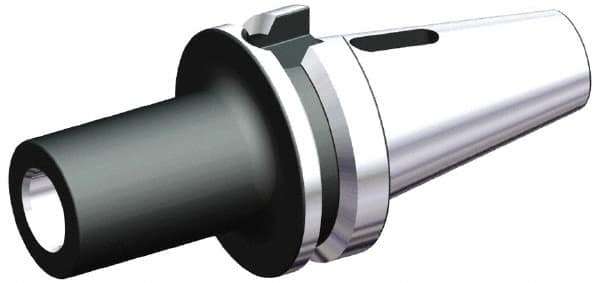

Kennametal - DV50 Outside Taper, 5MT Inside Taper, DV to Morse Taper Adapter - 105mm Projection, 69.9mm Nose Diam, 206.6mm OAL
Item #: 33333477
Brand: Kennametal
Model #: 1191989
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DV to Morse |
| Outside Taper Size | DV50 |
| Inside Taper Size | 5MT |
| Projection (Decimal Inch) | 4.1339 |
| Projection (mm) | 105.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 2.7520 |
| Nose Diameter (mm) | 69.90 |
| Overall Length (mm) | 206.60 |
| Overall Length (Decimal Inch) | 8.1339 |
| Drawbar Thread Size | M24 |
