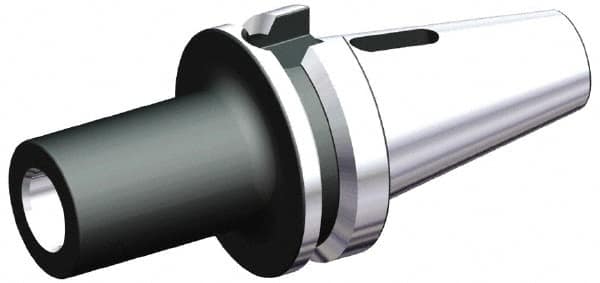

Kennametal - DV40 Outside Taper, 4MT Inside Taper, DV to Morse Taper Adapter - 95mm Projection, 48mm Nose Diam, 163.25mm OAL
Item #: 33333410
Brand: Kennametal
Model #: 1191948
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DV to Morse |
| Outside Taper Size | DV40 |
| Inside Taper Size | 4MT |
| Projection (Decimal Inch) | 3.7402 |
| Projection (mm) | 95.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.8898 |
| Nose Diameter (mm) | 48.00 |
| Overall Length (mm) | 163.25 |
| Overall Length (Decimal Inch) | 6.4272 |
| Drawbar Thread Size | M16 |
