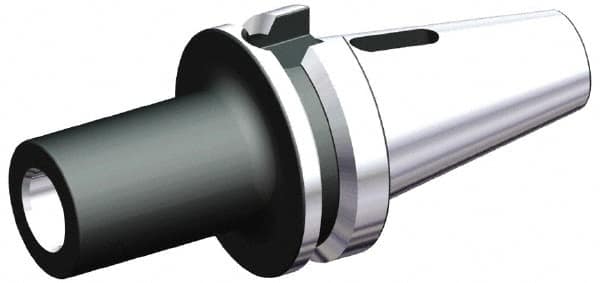

Kennametal - DV40 Outside Taper, 3MT Inside Taper, DV to Morse Taper Adapter - 70mm Projection, 40mm Nose Diam, 138.25mm OAL
Item #: 33333402
Brand: Kennametal
Model #: 1191947
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DV to Morse |
| Outside Taper Size | DV40 |
| Inside Taper Size | 3MT |
| Projection (Decimal Inch) | 2.7559 |
| Projection (mm) | 70.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Nose Diameter (mm) | 40.00 |
| Overall Length (mm) | 138.25 |
| Overall Length (Decimal Inch) | 5.4429 |
| Drawbar Thread Size | M16 |
