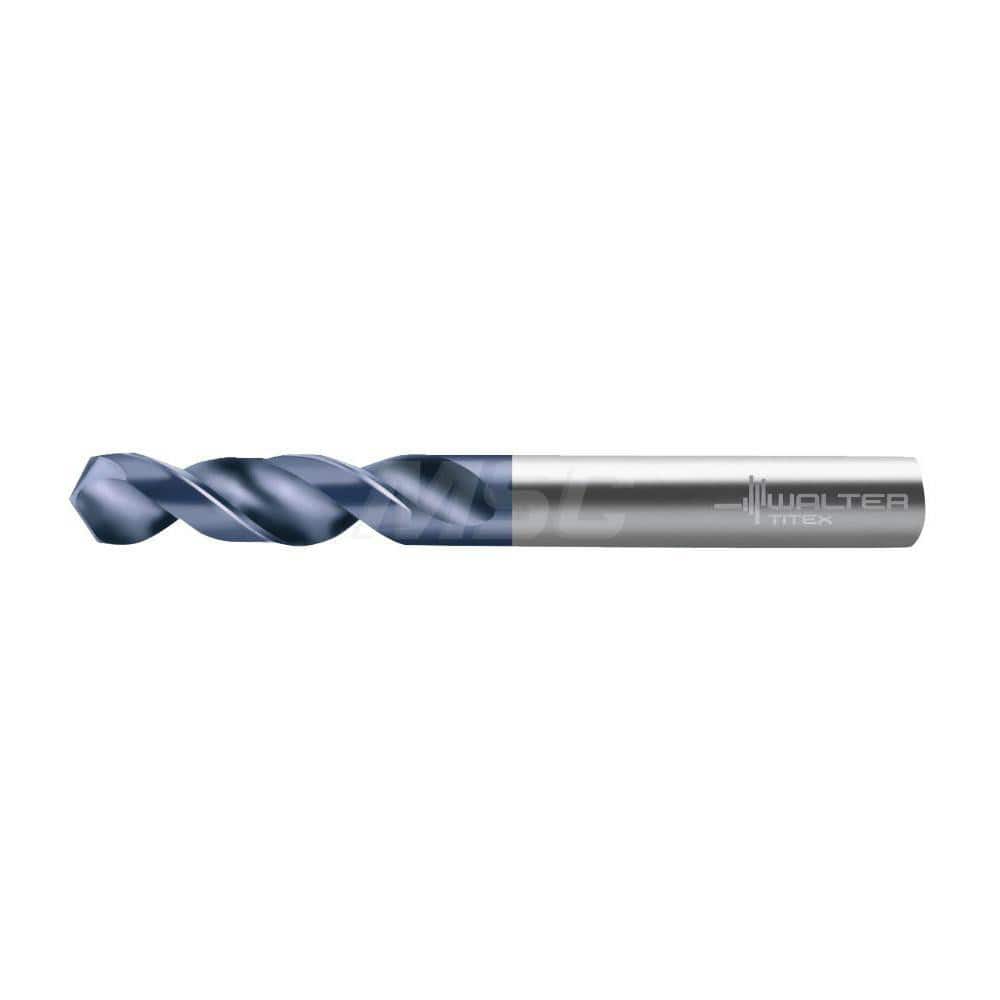

Screw Machine Length Drill Bit: 0.5512″ Dia, 118 °, Cobalt Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A1154TFT
Item #: 33242462
Brand: Walter-Titex
Model #: 5200066
Product Specifications
| Drill Bit Size (mm) | 14.00 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Six Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.5512 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | A1154TFT |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.5748 |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 2.0866 |
| Shank Length (mm) | 53.00 |
| Drill Point Length (mm) | 4.21 |
| Drill Point Length (Decimal Inch) | 0.1660 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | h8 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 2.1260 |
| Flute Length (mm) | 54.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M35 |
 | |
| MSC Part # | 33242462 |
| Mfr Part # | 5200066 |
| Country of OriginCountry of Origin is subject to change | France |
