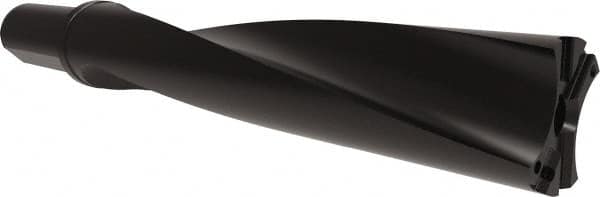

Allied Machine and Engineering - Series APX 63, 5xD, 2" Diam Weldon Flat Shank, Drill Body - 15.8437" Body Length to Flange, W6305H Toolholder, 69.99mm Nose Diam, 20.3438" OAL, Through Coolant
Item #: 33237165
Brand: Allied Machine and Engineering
Model #: W6305H-200F
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 63 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 15.8437 |
| Toolholder Style | W6305H |
| Nose Diameter (mm) | 69.99 |
| Nose Diameter (Decimal Inch) | 2.7555 |
| Overall Length (Decimal Inch) | 20.3438 |
| Gage Length (Decimal Inch) | 15.8437 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Size (Inch) | 1/4 |
