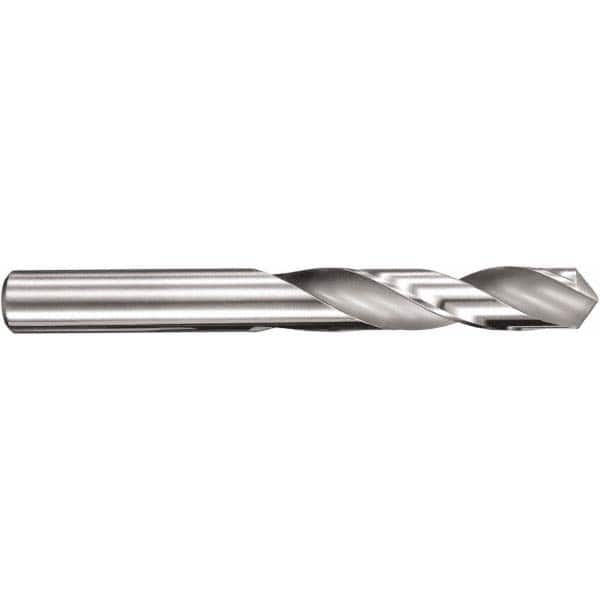

Screw Machine Length Drill Bit: 0.0453″ Dia, 145 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 108M
Item #: 33207184
Brand: SGS
Model #: 60927
Product Specifications
| Drill Bit Size (mm) | 1.15 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 145 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0453 |
| Drill Bit Size (Decimal Inch) | 0.0453 |
| Overall Length (mm) | 28.00 |
| Overall Length (Decimal Inch) | 1.1024 |
| Shank Diameter (mm) | 1.15 |
| Series | 108M |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 0.8268 |
| Shank Length (mm) | 21.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Flute Length (Decimal Inch) | 0.2756 |
| Flute Length (mm) | 7.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
