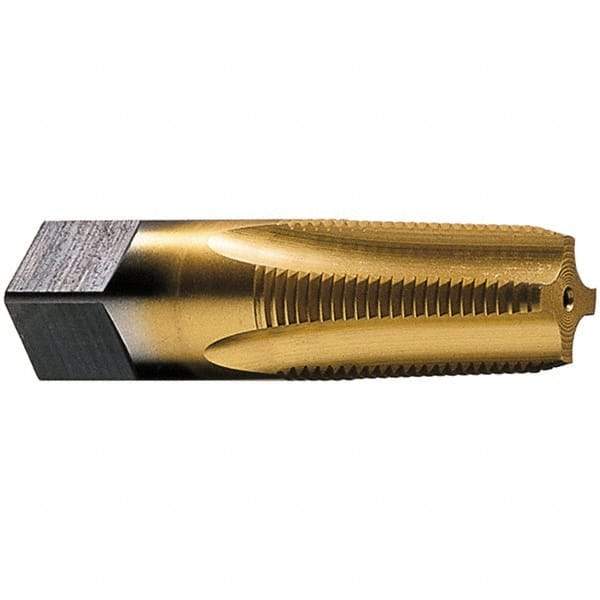

Vermont Tap & Die - 1/4-18 NPT Thread, 4 Flute Standard Pipe Tap - 2-7/16" OAL, 1-1/16" Thread Length, 9/16" Shank Diam, TiN Finish, High Speed Steel
Item #: 33160722
Brand: Vermont Tap & Die
Model #: 385409
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | 1/4-18 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.4375 |
| Overall Length (Inch) | 2-7/16 |
| Overall Length (mm) | 61.91 |
| Hook | Regular |
| Thread Length (Decimal Inch) | 1.0625 |
| Thread Length (Inch) | 1-1/16 |
| Thread Length (mm) | 27 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Square Size (Decimal Inch) | 0.4210 |
| Square Size (mm) | 11 |
| Series/List | TN3180 |
| Chamfer | 7 to 10 |
