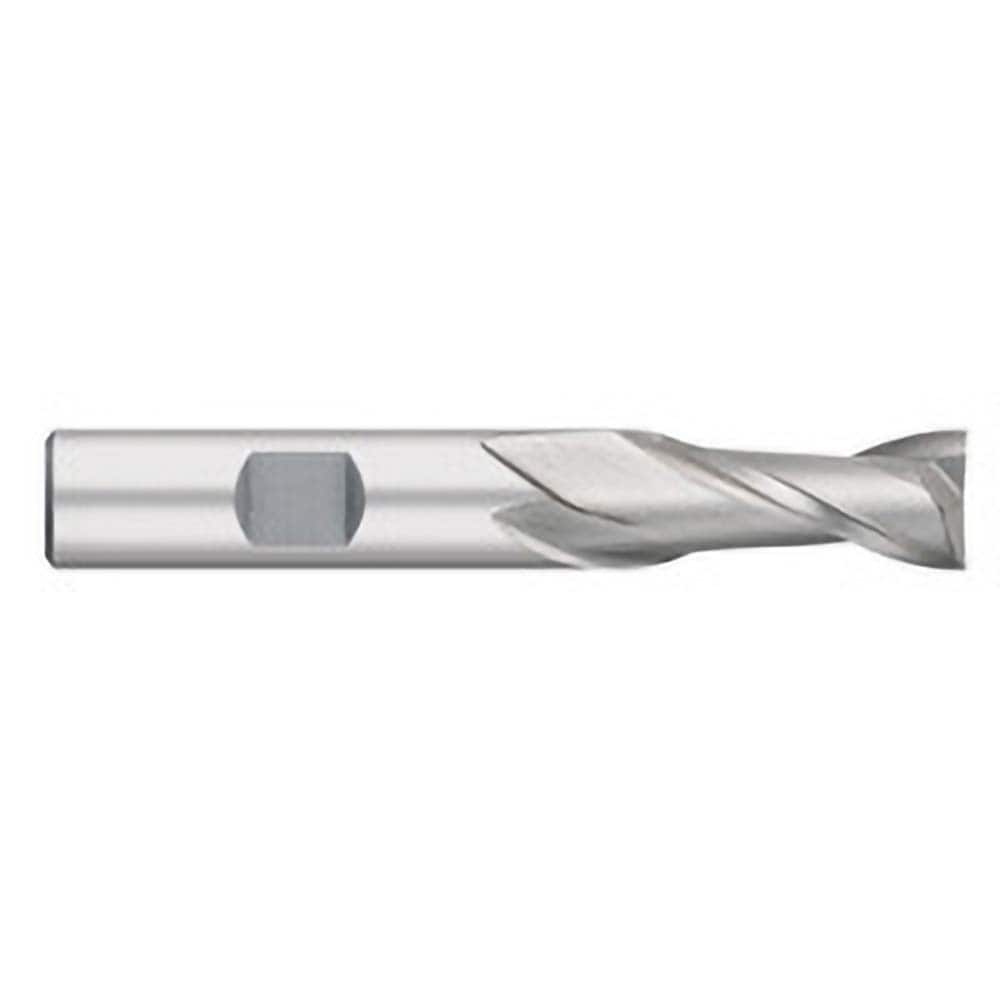

Square End Mill: 3/16'' Dia, 7/16'' LOC, 3/8'' Shank Dia, 2-5/16'' OAL, 2 Flutes, Cobalt Single End, Uncoated, Upcut Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 33138363
Brand: Titan USA
Model #: TE82705
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 7/16 |
| End Mill Material | Cobalt |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2-5/16 |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Length of Cut (Decimal Inch) | 0.4375 |
| Material Grade | M42 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.3125 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
