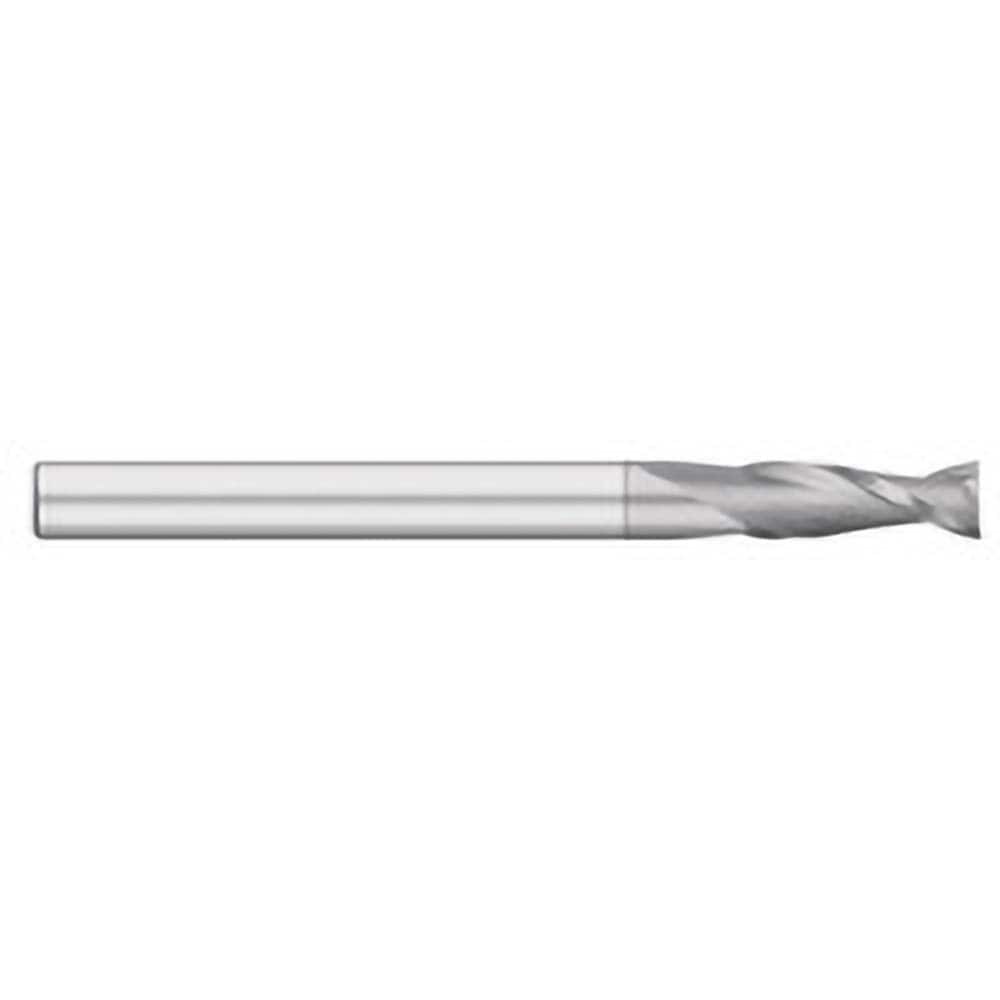

Titan USA - Square End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Number of Flutes: 2 ; Length of Cut (Inch): 1-1/8 ; Length of Cut (Decimal Inch): 1.1250 ; Material: Solid Carbide
Item #: 33125758
Brand: Titan USA
Model #: TC97012
Product Specifications
Square End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Number of Flutes: 2 ; Length of Cut (Inch): 1-1/8 ; Length of Cut (Decimal Inch): 1.1250 ; Material: Solid Carbide
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1-1/8 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Upcut |
