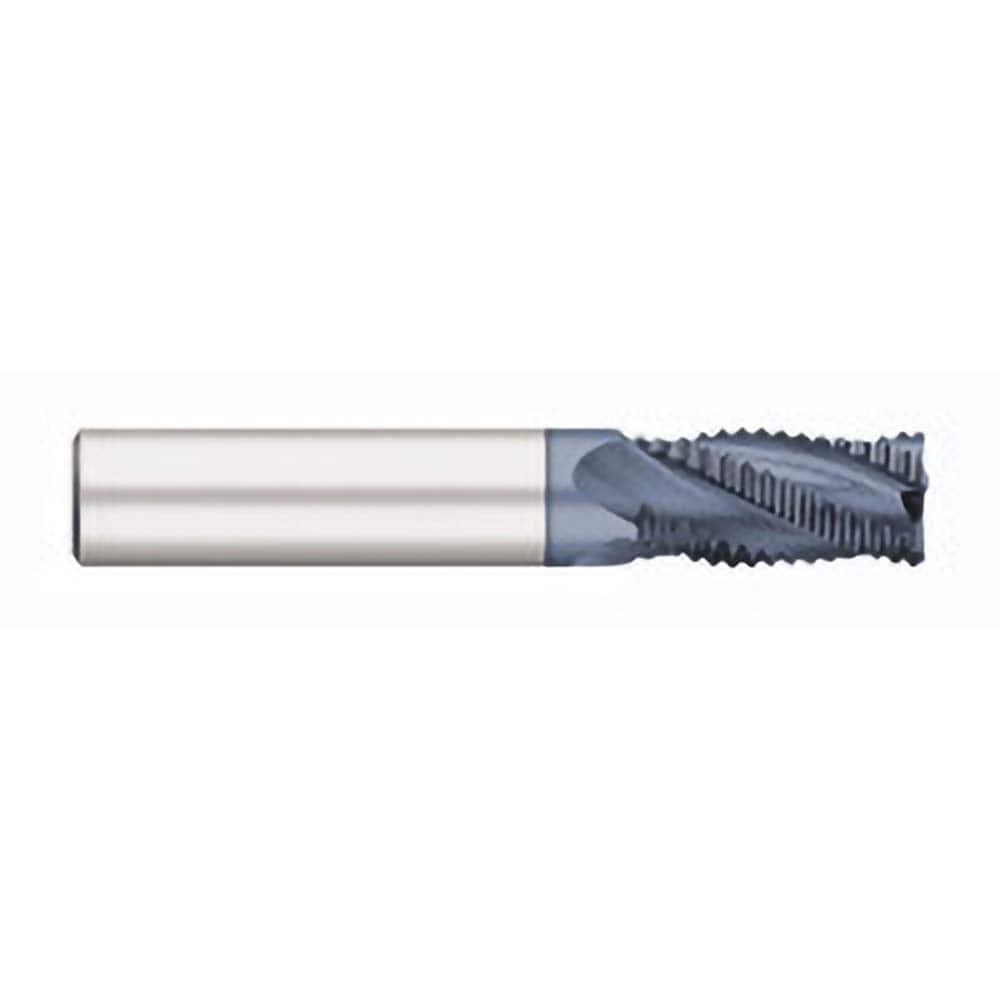

Titan USA - Roughing End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Number of Flutes: 4 ; Pitch: Fine ; Length of Cut (Inch): 7/8 ; Length of Cut (Decimal Inch): 0.8750
Item #: 33108499
Brand: Titan USA
Model #: TC29524
Product Specifications
Roughing End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Number of Flutes: 4 ; Pitch: Fine ; Length of Cut (Inch): 7/8 ; Length of Cut (Decimal Inch): 0.8750
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 4 |
| Pitch | Fine |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| End Type | Square |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Center Cutting |
| Helix Angle | 30 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.5000 |
| Series/List | 295 |
