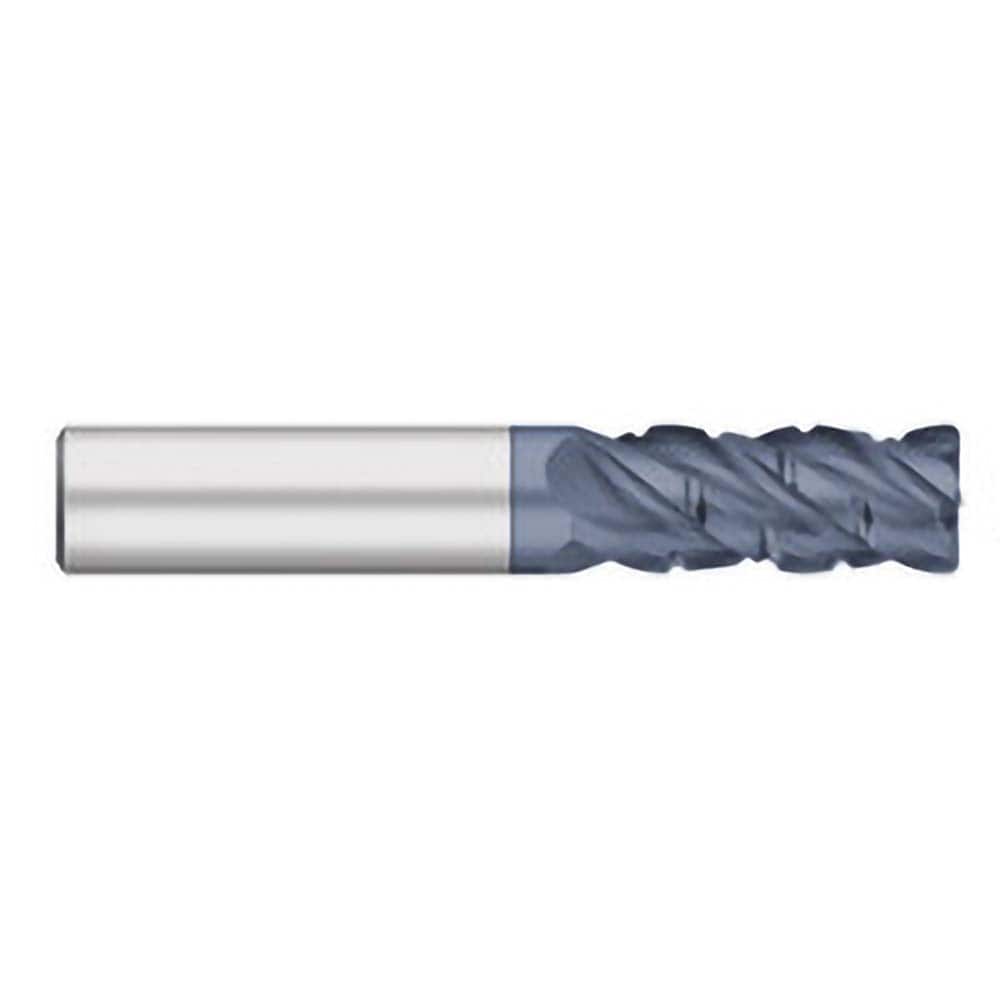

Titan USA - Roughing & Finishing End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 33108291
Brand: Titan USA
Model #: TC29820
Product Specifications
Roughing & Finishing End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 13/16 |
| Length of Cut (Decimal Inch) | 0.8125 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Helix Angle | 30 |
| Series/List | 298 |
