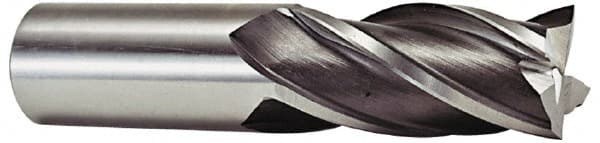

Niagara Cutter - 1-1/4", 2" LOC, 1-1/4" Shank Diam, 4-1/2" OAL, 6 Flute, Cobalt Square End Mill
Item #: 33070012
Brand: Niagara Cutter
Model #: 17011876
Product Specifications
| Mill Diameter (Inch) | 1-1/4 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Number of Flutes | 6 |
| Length of Cut (Inch) | 2 |
| Length of Cut (Decimal Inch) | 2.0000 |
| Material | Cobalt |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1-1/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 4-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
| Material Grade | M42 |
| Chipbreaker | No |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.000 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0005 |
| Series/List | SPC408 |
