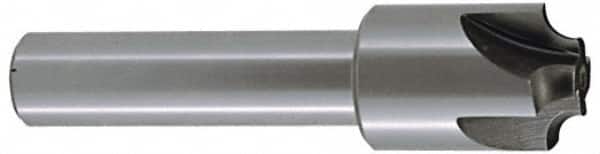

Keo - 17mm Radius, 2-1/8" Mill Diam, 4 Flute High Speed Steel Corner Rounding End Mill - Single End, Uncoated, 4-1/4" OAL, 1" Shank Diam
Item #: 33019290
Brand: Keo
Model #: 14443
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Material | High Speed Steel |
| Single or Double End | Single |
| Radius (mm) | 17.00 |
| Radius (Decimal Inch) | 0.6693 |
| Mill Diameter (Inch) | 2-1/8 |
| Mill Diameter (Decimal Inch) | 2.1250 |
| Number of Flutes | 4 |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1 |
| Tip Diameter (mm) | 14.00 |
| Tip Diameter (Decimal Inch) | 0.5512 |
| Overall Length (Inch) | 4-1/4 |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Radius Tolerance (Decimal Inch) | +0.001/-0.001 |
| Mill Diameter Tolerance (Decimal Inch) | +0.002/-0.000 |
