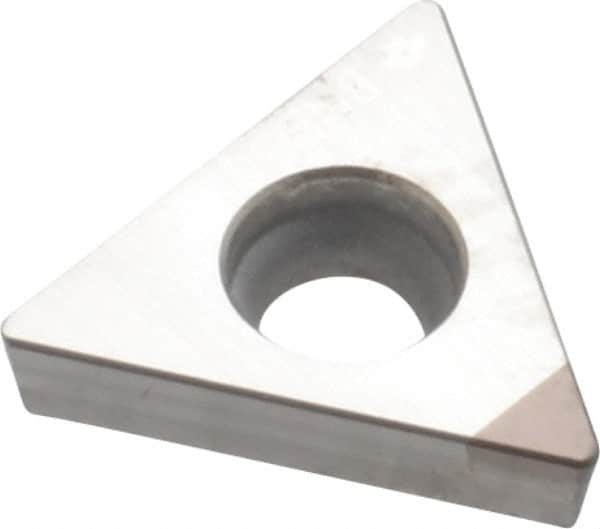

Sumitomo - NU-TPGX21.51 Grade BN250 PCBN Turning Insert - Uncoated, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 32995128
Brand: Sumitomo
Model #: 1657634
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | NU-TPGX |
| Insert Size | 21.51 |
| Material | PCBN |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | BN250 |
| Coating | Uncoated |
| Material Grade | C4 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Relief Angle | 11 |
| Included Angle | 60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0150 |
| Insert Holding Method | Screw |
| Shape | Triangle |
