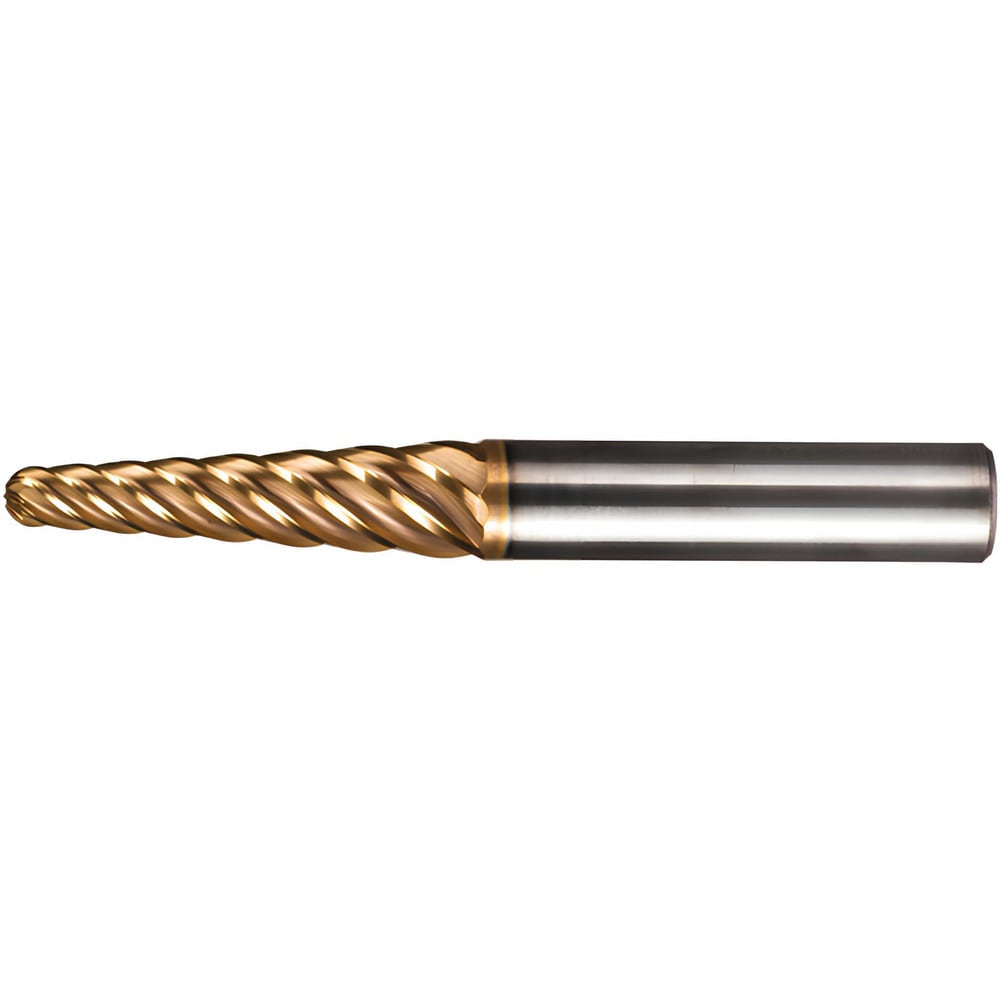

Ball End Mill: 7/16" Dia, 3/4" LOC, 6 Flute, Solid Carbide
Item #: 67221226
Brand: Kennametal
Model #: 7078270
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4375 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Nose Radius (Decimal Inch) | 0.2188 |
| Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Flute Direction | Right Hand |
| Series | HARVI III Taper Ball Nose |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 6 |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Nose Radius (Decimal Inch) | 0.2188 |
| Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Flute Direction | Right Hand |
| Series | HARVI III Taper Ball Nose |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 6 |
| UNSPSC Code | 27112803 |
| MSC Part # | 67221226 |
| Mfr Part # | 7078270 |
| Country of Origin Country of Origin is subject to change | Israel |
