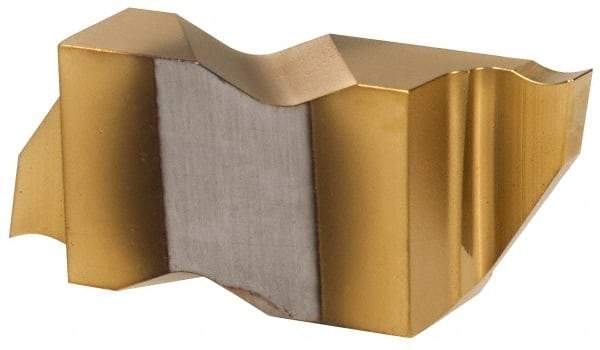

Hertel - 3062IG K Grade HC335, 1.57mm Cutting Width Carbide Grooving Insert - 3.05mm Max Depth of Cut, Right Hand, TiN Finish
Item #: 32774796
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IG |
| Insert Size | 3062 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (mm) | 3.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Manufacturer's Grade | HC335 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Insert Seat Size | 3 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.0100 |
| Coating Process | PVD |
| Series | HertelNotch |
| Overall Width (Decimal Inch) | 0.1950 |
