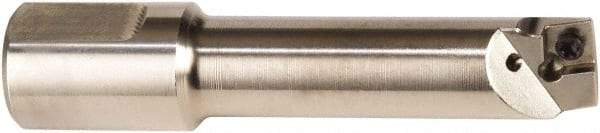

WOHLHAUPTER - 14mm Min Bore Diam, 2-7/8" OAL, 16mm Shank Diam, F10192D-S Indexable Boring Bar - 50mm Max Bore Depth, CC.. 06.. Insert, Screw Holding Method
Item #: 32758278
Brand: WOHLHAUPTER
Model #: 218051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | F10192D-S |
| Series | Wohlhaupter 019 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.5510 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.5510 |
| Minimum Bore Diameter (mm) | 14.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5510 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9690 |
| Overall Length (mm) | 73.00 |
| Overall Length (Inch) | 2-7/8 |
| Overall Length (Decimal Inch) | 2.8750 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | CC.. 06.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 92 |
| Maximum Bore Diameter (mm) | 21.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.8270 |
| Maximum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.8270 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.8270 |
| Back of Bar to Cutting Edge (mm) | 12.48 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4913 |
| Center to Cutting Edge (mm) | 6.80 |
| Center to Cutting Edge (Decimal Inch) | 0.2680 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 7 |
| Complete Insert Compatibility | CC.. 06.. |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
