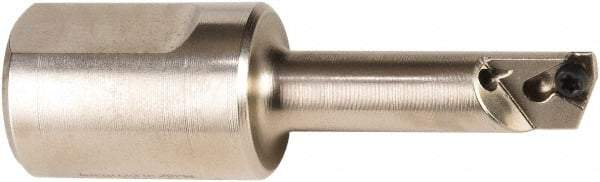

WOHLHAUPTER - 8mm Min Bore Diam, 53mm OAL, 16mm Shank Diam, F21192D-S Indexable Boring Bar - 30mm Max Bore Depth, WB.. 03.. Insert, Screw Holding Method
Item #: 32758211
Brand: WOHLHAUPTER
Model #: 218071
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | F21192D-S |
| Series | Wohlhaupter 019 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3150 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3150 |
| Minimum Bore Diameter (mm) | 8.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 30.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Overall Length (mm) | 53.00 |
| Overall Length (Decimal Inch) | 2.0870 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | WB.. 03.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 92 |
| Maximum Bore Diameter (mm) | 15.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.5910 |
| Maximum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.5910 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.5910 |
| Back of Bar to Cutting Edge (mm) | 7.22 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2842 |
| Center to Cutting Edge (mm) | 3.80 |
| Center to Cutting Edge (Decimal Inch) | 0.1500 |
| Insert Inscribed Circle (mm) | 3.97 |
| Insert Inscribed Circle (Decimal Inch) | 0.1562 |
| Rake Angle | 7 |
| Complete Insert Compatibility | WB..03.. |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
