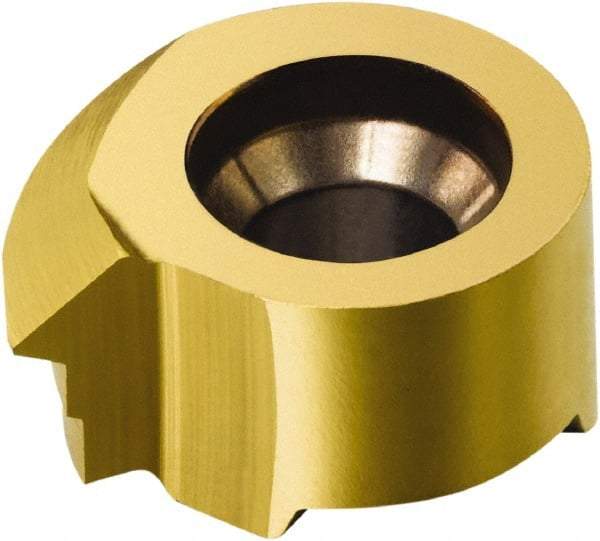

Sandvik Coromant - MB-xxTH..MM..R07 Grade 1025, Internal Threading Insert - 1.5mm Int Pitch, Right Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 32739328
Brand: Sandvik Coromant
Model #: 5736164
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB-xxTH..MM..R |
| Insert Size | 07 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Manufacturer's Grade | 1025 |
| Internal Pitch/TPI | 1.50 mm |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | MB-07TH150MM-10R 1025 |
| Width of Cutting Tip (mm) | 5.80 |
| Width of Cutting Tip (Decimal Inch) | 0.2283 |
| Series | CoroCut MB |
| Length (Decimal Inch) | 0.1181 |
| Overall Length (Decimal Inch) | 0.1496 |
| Maximum Depth of Cut (mm) | 0.81 |
