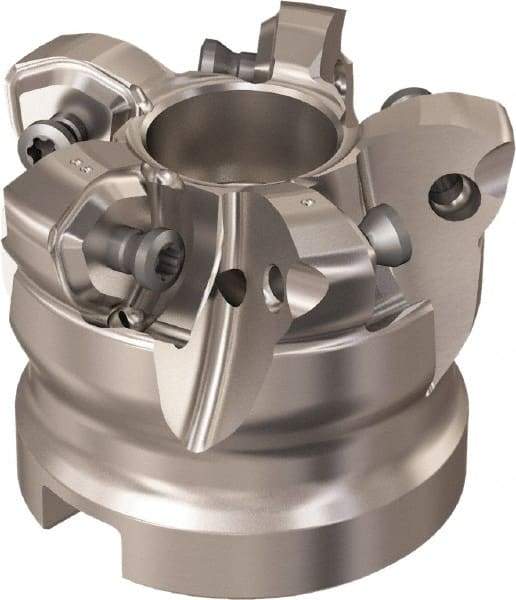

Seco - 5 Inserts, 35.6mm Cutter Diam, 1.8mm Max Depth of Cut, Indexable High-Feed Face Mill - 22mm Arbor Hole Diam, 10.4mm Keyway Width, 40mm High, R220.21 Toolholder, 218.21-230 Inserts, Series High Feed 6
Item #: 32649121
Brand: Seco
Model #: 82292
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.4016 |
| Cutting Diameter (mm) | 35.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 40.00 |
| Series | High Feed 6 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | 218.21-230 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12100 |
| Number of Flutes | 5 |
| Through Coolant | Yes |
| Keyway Width (mm) | 10.40 |
