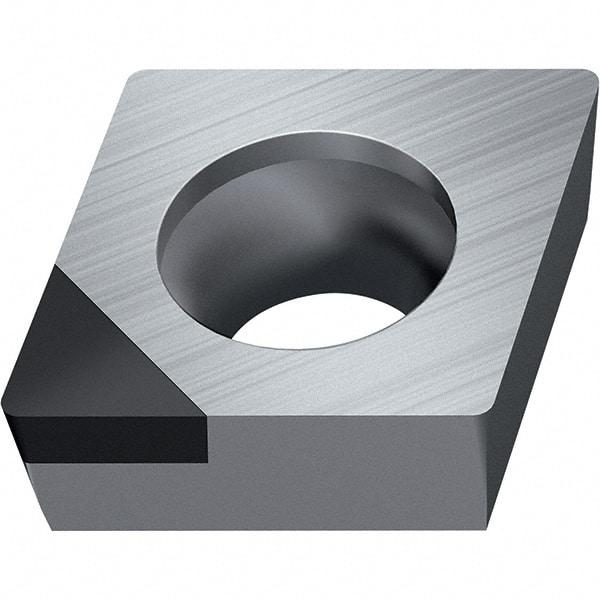

Walter - CPGW FS-1 Grade WDN10 Turning Insert - Polycrystaline Diamond Finish, 80° Rhombic, 6.35mm Inscr Circle, 2.38mm Thick, 0.4mm Corner Radius
Item #: 32612483
Brand: Walter
Model #: 7132605
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CPGW |
| Length (mm) | 6.45 |
| Length (Decimal Inch) | 0.2540 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WDN10 |
| Coating | Polycrystaline diamond |
| Chip Breaker | FS-1 |
| Insert Length (Decimal Inch) | 0.2540 |
| OverallLength (mm) | 6.45 |
| Overall Length (Decimal Inch) | 0.2540 |
| Insert Length (mm) | 6.4480 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| ISO Number | CPGW060204FS-1 WDN10 |
| Relief Angle | 11 |
| Proprietary Coating Designation | WDN10 |
| Manufacturers Catalog Number | 7132605 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CPGW_FS-1 |
| Maximum Depth of Cut (mm) | 6.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.2540 |
| Cutting Width (mm) | 6.45 |
| Shape | Rhombic 80 |
